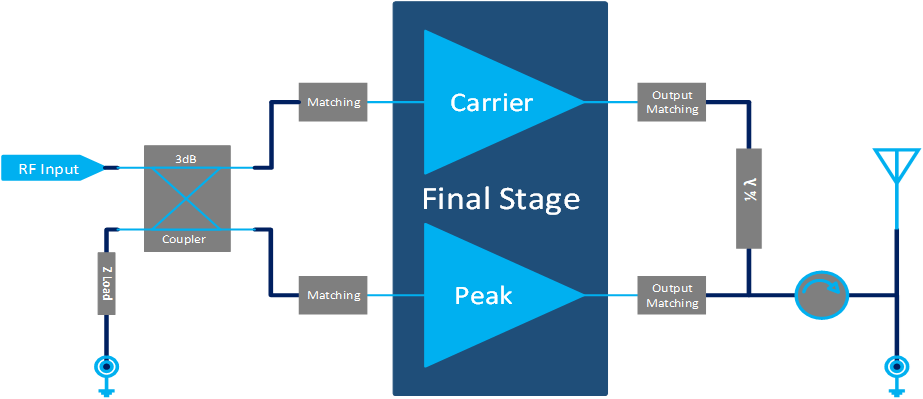

3300MHz-3800MHz 10W Final Solution
 | Final: DXG2PH36A-100N |
| |

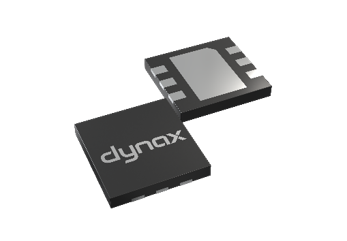

Package Type: DFN 7x6.5mm |
CW Pulsed 10% | Modulated Signal | |||
Freq (MHz) | Psat (dBm) | Gp (dB)@41.3dBm | DE (%)@41.3dBm | ACLR (dBc)@ 41.3dBm |
| 3400 | 50.4 | 15.8 | 53.4 | -30.0 |
| 3500 | 50.2 | 15.8 | 54.3 | -32.0 |
| 3600 | 50.0 | 15.2 | 53.6 | -33.0 |
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH; Tested without isolator. | ||||
