4800MHz-5000MHz 20W Final Solution

應(yīng)用方案 | 日期：2023-06-30 | 閱讀：

Final:

DXG2CH50A-200EF

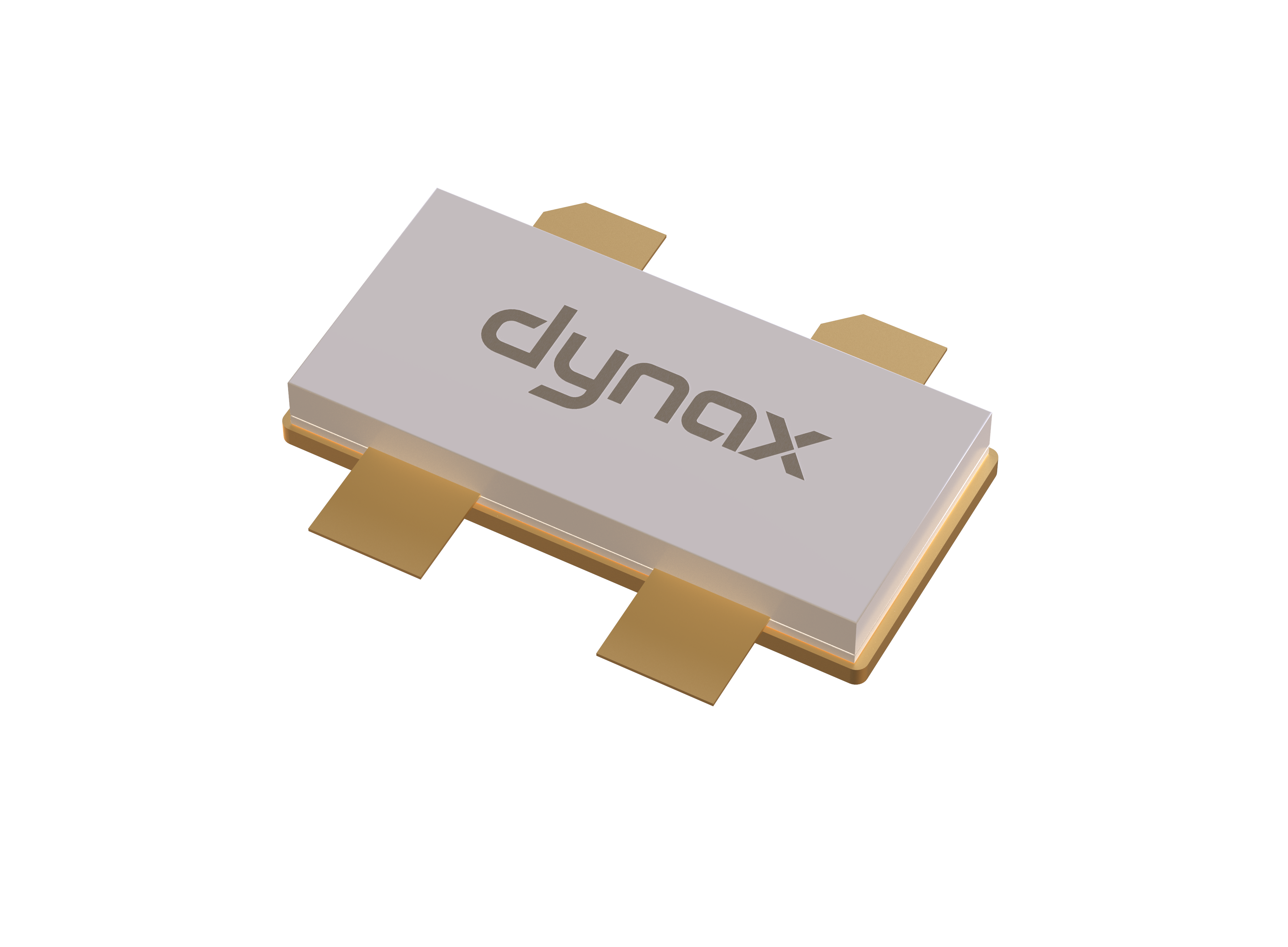

4800MHz-5000MHz 20W Final Solution(圖2)

Package Type:

780-4

	CW Pulsed 10%	Modulated Signal
Freq (MHz)	Psat (dBm)	Gp (dB)@44.5dBm	DE (%)@44.5dBm	ACLR (dBc)@ 44.5dBm
4800	53.3	14.0	44.2	-28.5
4900	53.2	14.2	44.5	-28.5
5000	53.1	14.2	44.6	-29.0
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH; Tested without isolator.
